HOWO မိလ္လာစနစ်သုံး ဖုန်စုပ်ကားသည် ရွှံ့၊ မိလ္လာစသည်တို့ကို စုဆောင်းခြင်း၊ လွှဲပြောင်းခြင်း၊ သန့်ရှင်းရေးလုပ်ခြင်းနှင့် သယ်ယူပို့ဆောင်ခြင်းအတွက် အထူးအသုံးပြုသည့် မိလ္လာစနစ်သုံး ယာဉ်တစ်စီးဖြစ်သည်။ ၎င်း၏ အဓိကရည်ရွယ်ချက်မှာ ဤညစ်ညမ်းပစ္စည်းများကို ပတ်ဝန်းကျင်သို့ ဒုတိယအဆင့်ညစ်ညမ်းမှုမှ ရှောင်ရှားရန်ဖြစ်သည်။
ပေးဆောင်ခြင်း:
T/T, West Unionထုတ်ကုန်မူလအစ:
China CEECသင်္ဘောဆိပ်ကမ်း:
China main portကြာမြင့်ချိန်:
45 Daysအလုပ်စွမ်းရည်:
20000Lအတိုင်းအတာ (မီလီမီတာ):
10300*2530*3150mmWheelbase (mm):
4600+1350 mmအင်ဂျင်ပါဝါ:
400 HPအင်ဂျင်အမျိုးအစား:
WP12S400E201Axle နှင်:
6x4ဂီယာဘောက်:
HW19710ပြီလေ။:

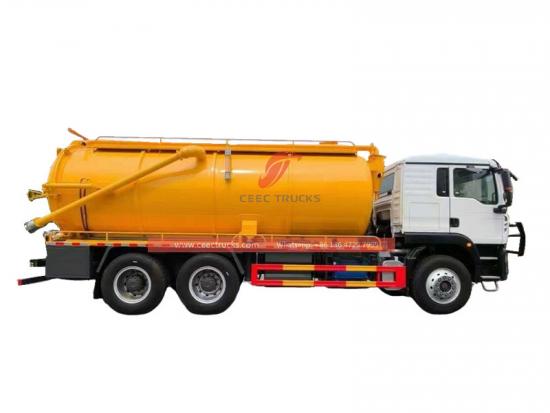

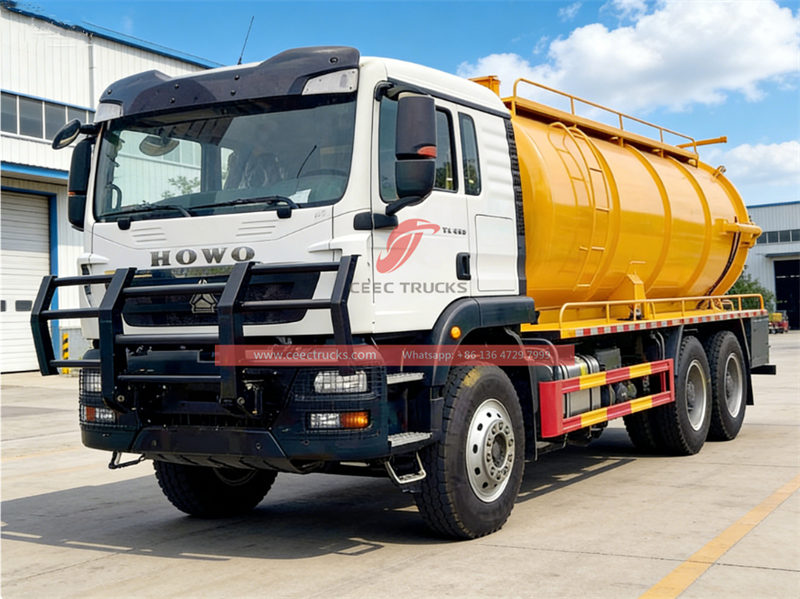

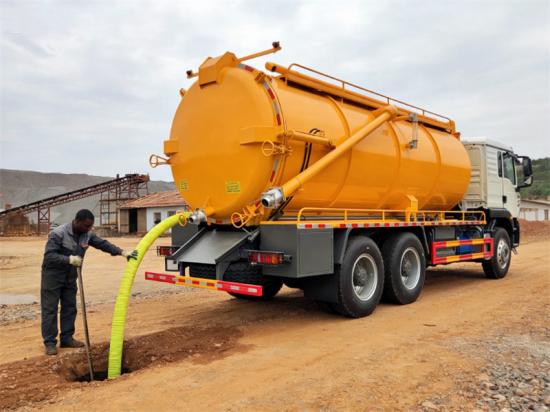

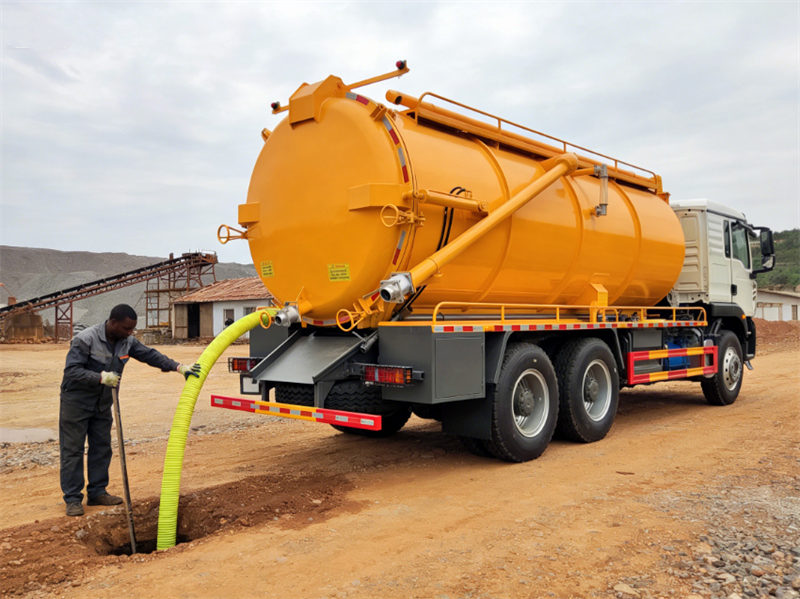

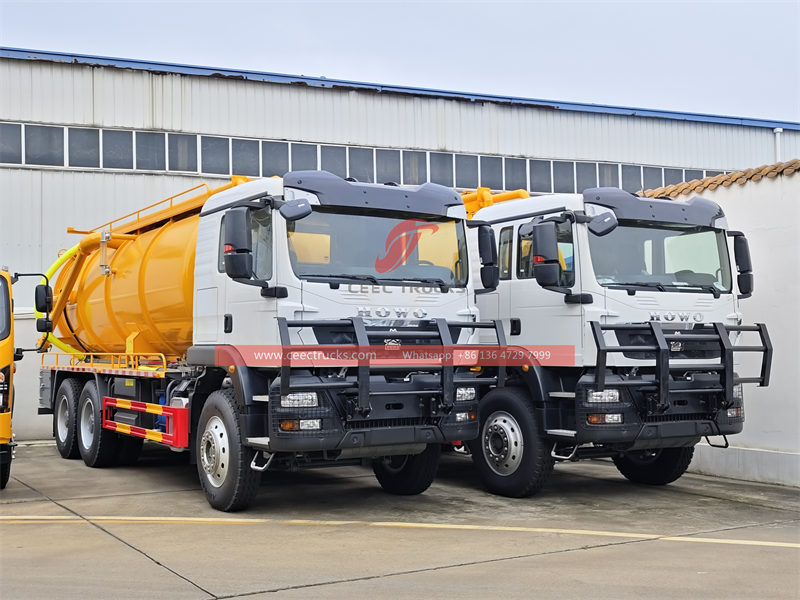

Jurop pump, 6×6, RHD drive is optionalHowo ၂၀,၀၀၀ လီတာ မိလ္လာရေ သန့်ရှင်းရေး ထရပ်ကား is a sanitation vehicle specially used for collecting, transferring, cleaning and transporting sludge, sewage, etc. Its main purpose is to avoid secondary pollution of these pollutants to the environment. HOWO vacuum suction truck has the function of self-priming and self-discharging, can work quickly and efficiently, and has a large loading capacity and convenient transportation. They are usually used in many fields such as urban sanitation, highways, community sanitation, garden green belts, etc.
Manufacturer: CEEC TRUCKS GROUP
Product Features:
☛ Howo heavy 6x4 chassis with stronger power WP12S400E201 400HP engine.
☛ Suctioning,displacing(option),transporting and dischargeing dry,wet and hazardous substsnces, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.
☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.
☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.
|

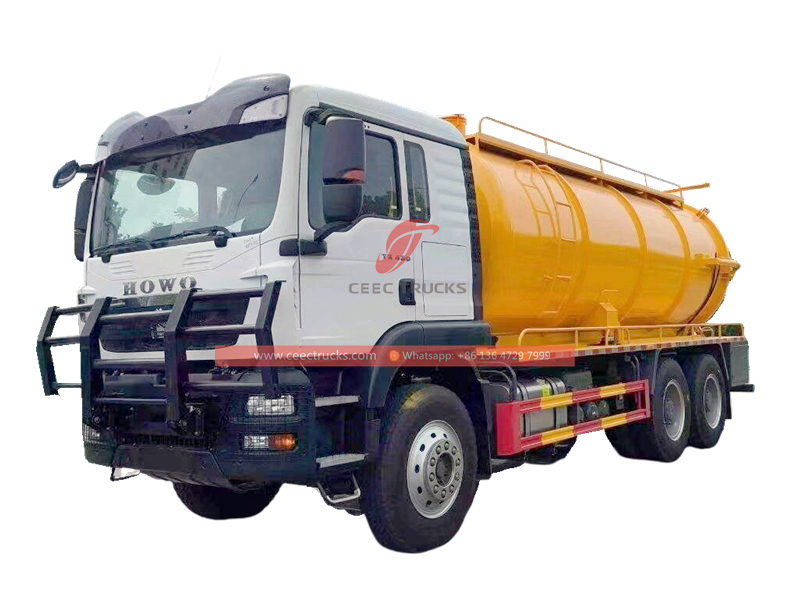

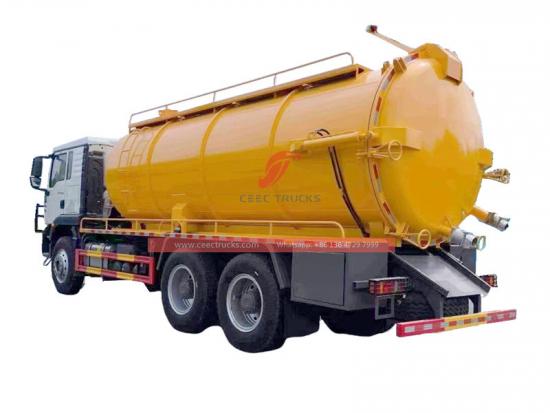

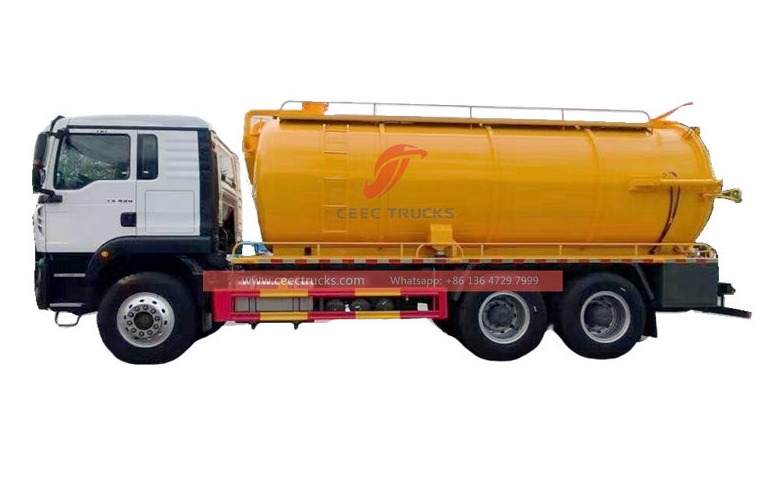

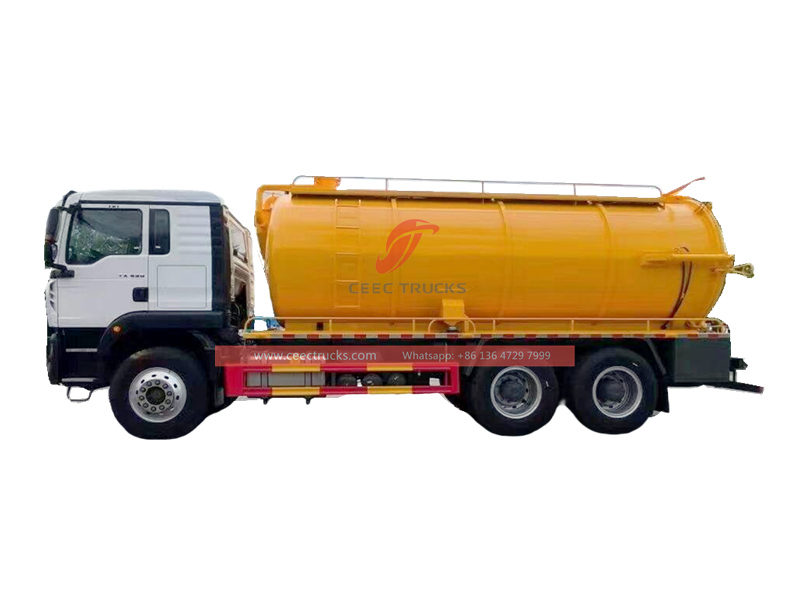

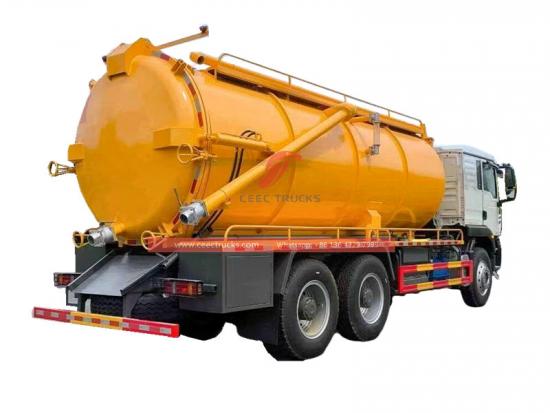

Howo heavy 20000L septic tanker truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
103 00*2 53 0* 31 50mm |
|
|
GVW |
25 00kg |
|
|
Curb weight |
12350 kg |
|
|
Sewage tank (m3) |
20 |
|
|
Drive system |
6 * 4 |
|
|
Chassis Description |
||
|
Chassis brand |
Howo |
|
|
Steering |
LHD |
|
|
Cab |
Howo ,single row, 2 seats,with A/C |
|
|
Wheelbase |
4600+1350 mm |
|
|
Tire specification |
12.00 R 20 |
|
|
Tire quantity |
10 tires and 1 spare tire |
|
|
Engine |
Engine model |
WP12S400E201 |
|
Emission level |
EURO 3 |
|
|
Displacement |
9.85 L |
|
|
Horse power |
400 HP |
|
|
Weight |
1360 Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
10 -speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
7 . 5 T |
|
Rear |
16 T *2 |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
400 L |
|
|
Tanker Description |
||
|
Tanker
|
Capacity |
20 000 Liters |
|
Material |
6 mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump
|
Type |
Water circulation pump |
|
Flux |
68(L/S) |
|
|
Rating speed |
800~1000(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |

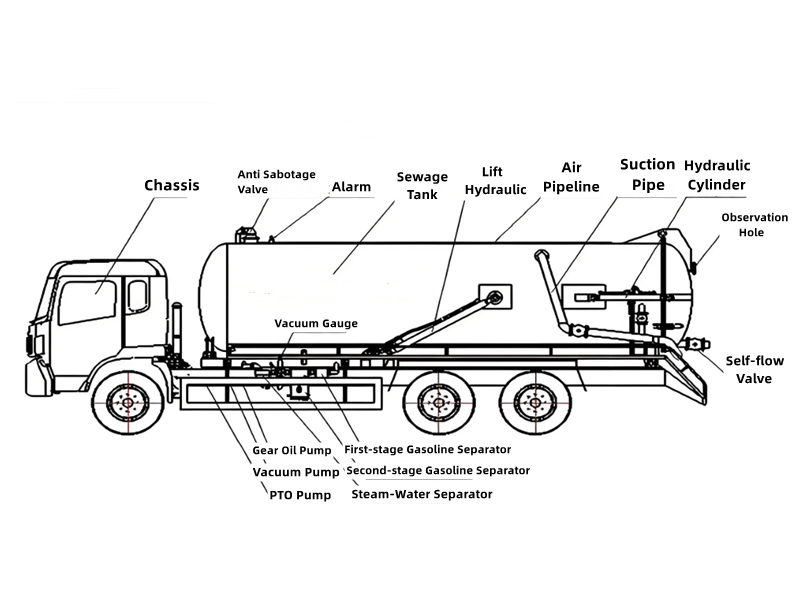

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|

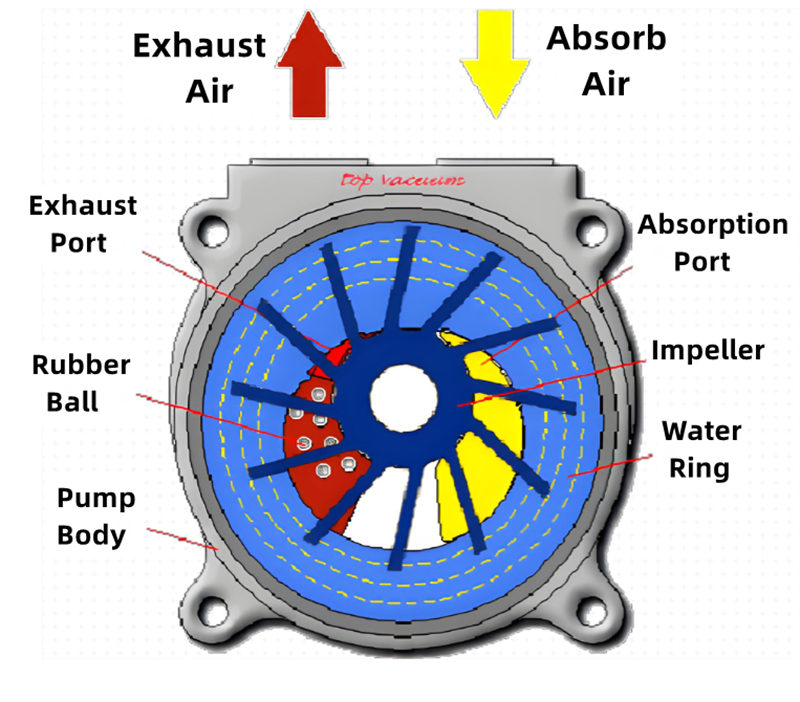

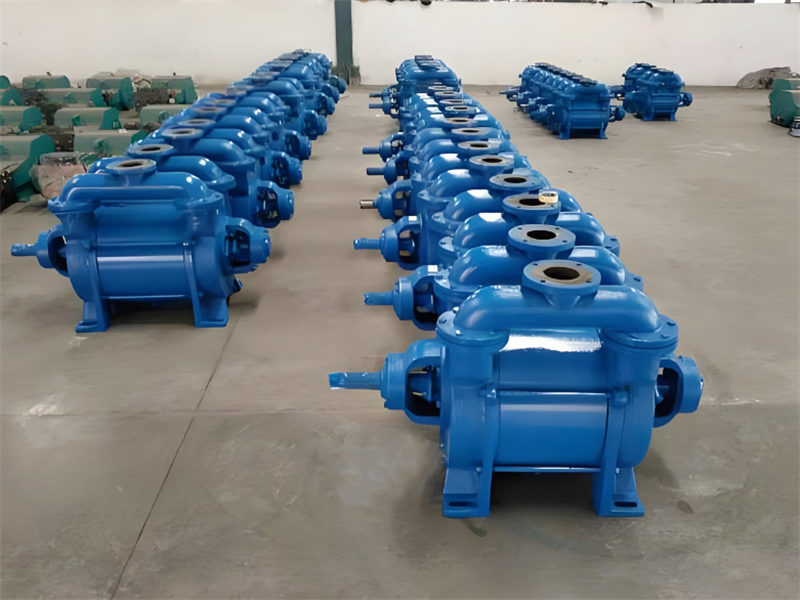

1. SK pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.
2. Key components of SK pumps , are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.
3. SK pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.
|
|
|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
489 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
5 12 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Max. Pressure |
psig |
29 |
|
Power required at 15" of vacuum |
hp |
20 |
|
Power required at max. pressure |
hp a |
38 |
|
Max. speed |
rpm |
1400 |
|
Working speed |
rpm |
1200 |
|
Oil tank capacity |
lt |
4.8 |
|
Oil consumption |
Gr/h |
210 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
80 |
|
Hose |
in |
3/4 |
|
Flange |
in |
- |
|
Weight |
lbs |
58 5 |
♦ Tank design Use corrosion-resistant materials (such as stainless steel, carbon steel + anti-corrosion coating) .
♦ Inner wall treatment, spray epoxy resin or polyurethane coating, thickness ≥ 200μm, acid and alkali corrosion resistance.
♦ S andblasting and rust removal, spray anti-rust primer + polyurethane topcoat, suitable for complex outdoor environments.
♦ T he tank body welding must use argon arc welding or laser welding to ensure that the weld is uniform and free of pores.
♦ Annealing treatment is required after welding to eliminate welding stress and avoid deformation and cracking.
♦ For tank body welding, the weld must pass flaw detection (such as X-ray or ultrasonic testing).
♦ Wave-breaking plates (bulkheads) are installed to reduce the impact of liquid sloshing on the stability of the Howo sewage tank truck.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5. promptly delivery. any order is welcome.
We CEEC TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
